LoadBox / Attenuator

Push Your Amp To The Edge At Bedroom Volume.

Much time and effort was invested to develop a perfect tool and circuit that captures the authentic sound and tone of your beloved amp, but at adjustable usable speaker volume and for your direct recording without a microphone

Silent stage perfect tool: use your tube amp on stage without speaker cab.

The Elan SoundBakary is an 4Ω -8Ω-16Ω impedance device.

Be sure to connect its AMP IN input to the appropriate output on your amplifier to prevent damage. Mismatching impedance may cause damage to your amplifier. The maximum power rating of the Elan SoundBakary is 100W.

Do not connect the Elan SoundBakary to any amplifier with a power rating greater than 100W, as this may cause damage to the Elan SoundBakary and/or your amplifier.

Elan SoundBakary Load Box represents the pinnacle of cabinet imaging technology for use on stage or in your studio – allowing you to use your favorite tube amplifier without a cabinet connection. The Load of the Elan SoundBakary  provides 4-8-16Ω impedance (100 watts maximum) while outputting a balanced and unbalanced line signal.

Unlike other load boxes and attenuators, the Elan SoundBakary utilizes Elan Audio Lab Dynamic Impedance technology to create a level of realism and organic sound never before achieved. Record your amp in its optimal state without deafening your ears, and get consistently great sound without the hassle of placing microphones and using acoustics.

It’s important to note that the Elan SoundBakary does not simulate the characteristic sound of a cab, but rather allows you to connect your amp to your sound card. The simulation itself is done by routing your amp’s signal through speaker simulation hardware such as that found in DAW products or various software, such as QBASE ^tm and other

The Elan SoundBakary features a Speaker Thru output so you can connect a real cab while feeding a line signal to your sound card or external cab simulation software. The volume switch transmits the resonance of the load.

Key Features:

• The device operates at in any impedance!
• Maximum usable power – 100 watts!
• Unique volume switch for a wide range of sounds
• Includes a Speaker Thru and attenuator output for combination with a real cab
• Balanced and unbalanced line output
• The device is passive and does not require any power
• Has Dynamic Impedance technology for a more organic sound

Unleash your tube amp’s full potential without disturbing the peace, thanks to advanced Reactive Load technology that preserves your tone and dynamics.

• Ideal for tube Amps: Designed for amps up to 100 watts
• Adjustable Attenuation: Dial in the perfect level for stage, studio, or practice, the speaker dial out will deliver up to 25% of the amp regular level
• 4-8-16 ohm input : to fit any amp speaker impedance output.

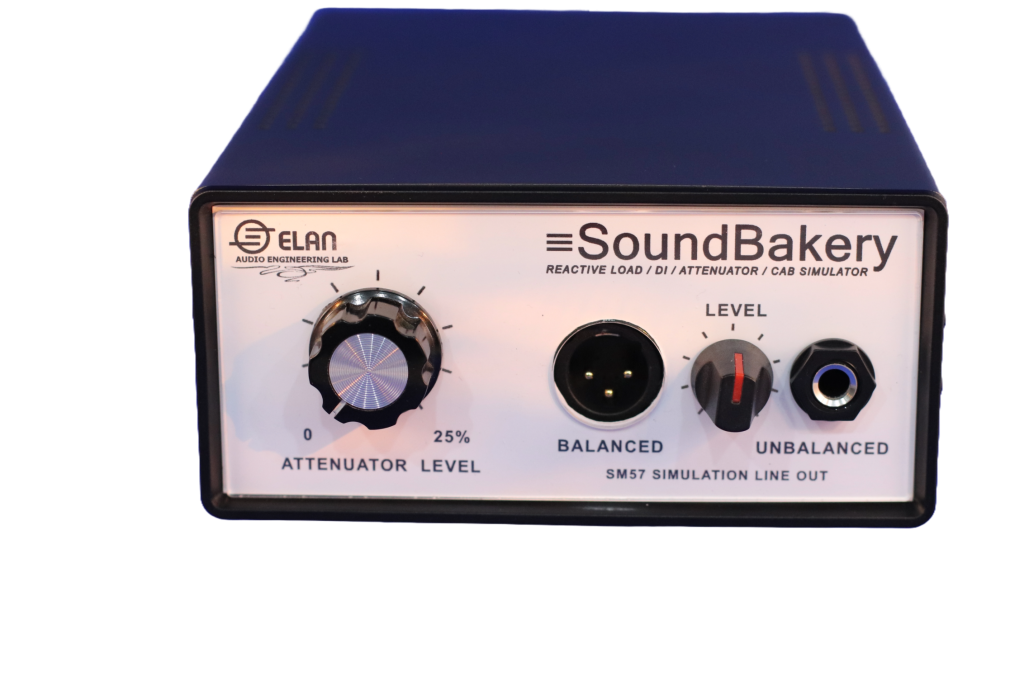

• Simple, Intuitive Controls:
  • Attenuation knob
  • Volume level for the line out
  • Balance and unbalanced out XLR/PL:  connect your amp to your sound card or the house PA,
  • No cab is needed– great for silent stage.Connectivity:

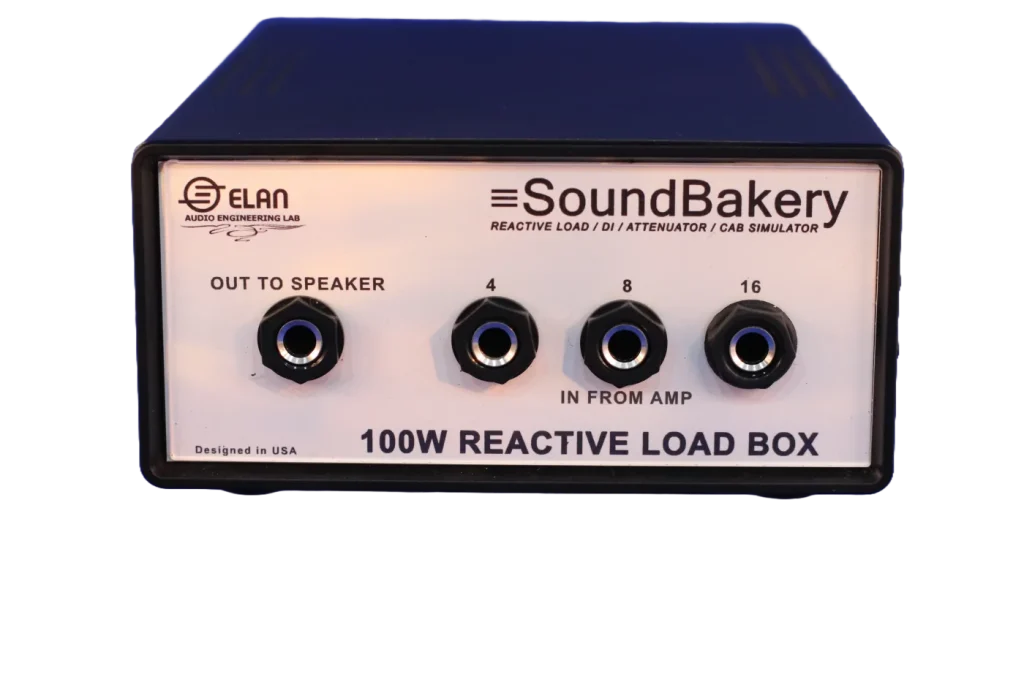

    • Amp input: 6.3 mm jack for 4-8-16 Ohm
    • Speaker output: 6.3 mm jack
    • Line out: 6.3 mm jack
    • Line out balanced XLR
• Power Options: no power needed
• True transparent signal integrity
• Impedance: 4- 8 -16 Ohm
• Compact & Rugged:
  • Dimensions: 150 x 200 x 70 mm
  • Weight: 1.1 kg
  • Made by hand in the USA
